Wire Clamp - Ningbo Hexin Low Pressure Casting,Gravity Casting,Die Casting Mould Making,Aluminum Casting Plant

Right Angle Hanging Plate

2024-12-12

Right-angle hanging plate is mainly used for insulator strings of tension-resistant towers.U-type hanging ring, two boards, right-angle hanging plate, extension ring, U-type screws, the above fixtures are known as general-purpose fixtures, which are used for the connection between insulator strings and fixtures, between wire clips and insulator strings, and between lightning wires and towers. Ball head hanging ring, bowl head hanging plate, is a special fixture for connecting ball and socket type insulators. Brand Hexin Model Z-7/ZH-7 Material Aluminum Alloy Product Grade Grade I Executive Quality Standard National Standard Whether Standard Parts Yes Processing Customization Yes Structure Height 10(mm) Scope of Application Electricity Construction Usage Electricity Construction Weight 0.3(kg) Place of Origin Ningbo, Zhejiang Province, China Application Right Angle Hanging Plate is a widely used connecting tower fixture all over the world, and some of these structurally improved products have new names, such as. Trunnion Plate, etc. The common features are: the upper end of the plate (...

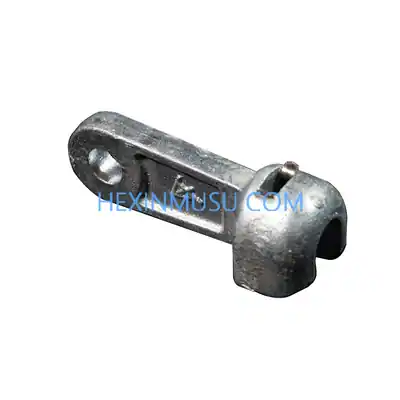

Bowl head hook and loop

2024-12-02

Bowl head hanging plate in the construction of the power grid belongs to the very important connection fittings, its core purpose is to connect the suspension wire clamp and insulator string, and other related accessories work together, and then reach the connection of the conductor and the realization of the effectiveness of the insulation. From the domestic many transmission lines carried out by the failure analysis results, transmission lines paralyzed, the main root cause is the power fittings suffered different degrees of wear and tear and fracture. In view of this, the implementation of strength analysis for power fittings, and its structure to be improved and optimized is particularly necessary. Brand Hexin Model W-10 Material Aluminum Alloy Product Grade Grade I Executive Quality Standard National Standard Whether Standard Parts Yes Processing Customization Yes Whether Imported No Scope of Application Electricity Construction Usage Electricity Construction Weight 0.90(kg) Place of Origin Ningbo, Zhejiang, China Application Bowl Head...

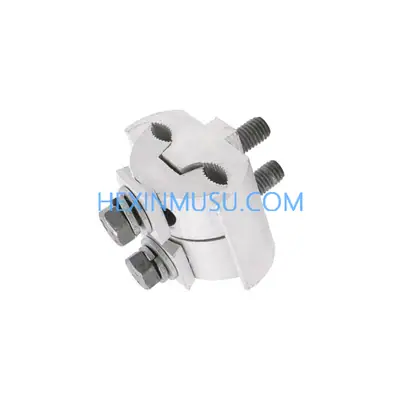

Shaped parallel groove wire clips

2024-11-25

During the installation and operation of a tie line tower, the pulling force of the tie line needs to be precisely adjusted to ensure that the force is in a balanced state. In order to facilitate the installation and subsequent adjustment of the cable, adjustable cable clamps are usually placed in the area around the lower extension of the cable. Adjustment of the tie line can be accomplished with the aid of either basket screws or wedge-shaped UT-shaped tensioning clips, although the use of basket screws for adjustment of the tie line in towers has become less common in today's line conditions. The wedge-shaped UT-shaped tensioning clamp consists of a wedge mother, a wedge and a long U-shaped screw with a certain adjustment range. These clamps are not only used for stabilizing the tension wire, but also for adjusting the length of the wire and are suitable for the installation of GJ-25 to GJ-70...

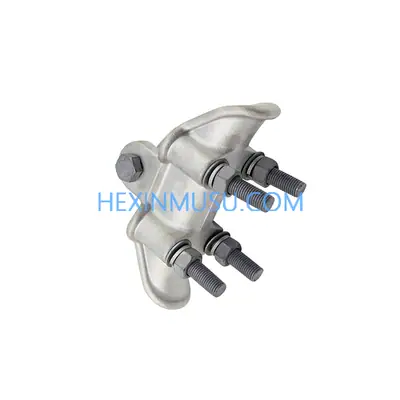

XGH Pendant Clamp

2024-11-22

There are two main types of common stereotyped products for pendant wire clamps, one is the retained U-bolt style (i.e., boat type wire clamps), and the other is the common stereotyped products for pendant wire clamps, which are mainly of two types. One is the retained U-bolt type, often referred to as boat type wire clamps, which consists of a hanger U-bolt, a hull of wire clamps made of malleable cast iron, and a pressure plate. The second is the pre-twisted pendant wire clamp. Pendant wire clamps in the domestic application is extremely wide, mainly used for the wire fixed in a straight tower insulator string, or the lightning line suspended in a straight line tower, can also be in the transposition of the tower to support the transposition of the wire as well as for the tension-resistant corner tower jumper fixing, which is characterized by the installation of convenient and quick. The following is a detailed introduction to the two types of overhanging wire clamps: (1) the old ship-shaped wire clamps: wire and lightning conductor can be used to make...

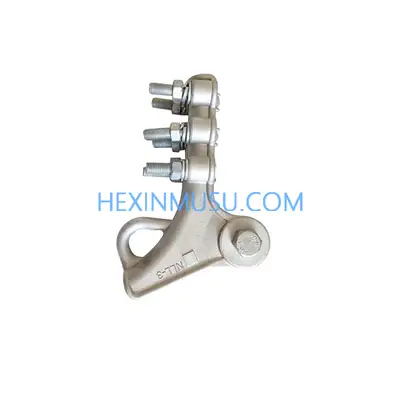

NLL-2 Tension Clamp

2024-11-21

　Tension clamp (tension clamp, strain clamp, dead-end clamp), as an important fixture, is mainly used to fix the wire, so that it can withstand the wire tension, and the wire is properly hung to the tensioning string or tower. From the point of view of the structure and installation conditions, tensioning wire clamps can be roughly divided into the following two categories: non-conductive detachable tensioning wire clamps This type of tensioning wire clamps need to withstand all the tension of the wire or lightning line. The clamp holding force is required to be not less than 90% of the rated tensile strength of the installed conductor or lightning conductor, and does not function as a conductor of electricity. A significant advantage is that this type of wire clip can be removed after completion of the wire installation for separate use in other applications. Common types of this type of wire clip include bolt type tensioning clips and wedge type tensioning clips. Screw...
