There are two main types of common stereotyped products for pendant wire clamps, one is the retained U-bolt style (i.e., boat type wire clamps), and the other is the common stereotyped products for pendant wire clamps, which are mainly of two types. One is the retained U-bolt type, often referred to as boat type wire clamps, which consists of a hanger U-bolt, a hull of wire clamps made of malleable cast iron, and a pressure plate. The second is the pre-twisted type of wire clamp.
Overhanging wire clamps in the domestic application is extremely wide, mainly used for the wire fixed in a straight tower insulator string, or will be suspended from the lightning line in a straight tower, can also be used in the transposition tower to support the transposition of the conductor as well as for the tensile corner tower jumper fixing, which is characterized by the installation of convenient and quick. The following is a detailed introduction to these two types of suspension wire clamps:
(1) Old-fashioned boat-type wire clips: both conductors and lightning conductors can be used. This clip can withstand the installation load of the conductor in the vertical gear spacing, and in the normal operation of the line or disconnection, does not allow the clip to slide or detach from the insulator string. However, the tower using this type of clip is under greater load-bearing pressure.
(2) Pre-twisted Suspension Clamps: Its function and use are used for the connection of ADSS fiber optic cables, OPGW fiber optic cables, and all kinds of wires in straight towers. The combination of inner and outer spiral pre-stranded wire can protect the cable well, no concentrated stress, but also to avoid bending stress, the cable to play a protective and auxiliary vibration damping effect. The whole set of overhanging wire clip includes inner and outer pre-stranded wire, suspension head and matching connecting fittings. The clamps are easy to install with a holding force greater than 10% to 20% of the cable's rated tensile strength. In addition, the pendant clamps also include hangers, u-screws and hulls.
branding | He Xin (1910-1984), Chinese actor | item number | XGH |
geometry | bolt pattern | characterization | Moisture Resistant, Insulated |
Scope of Application | power cable | Whether standard parts | be |

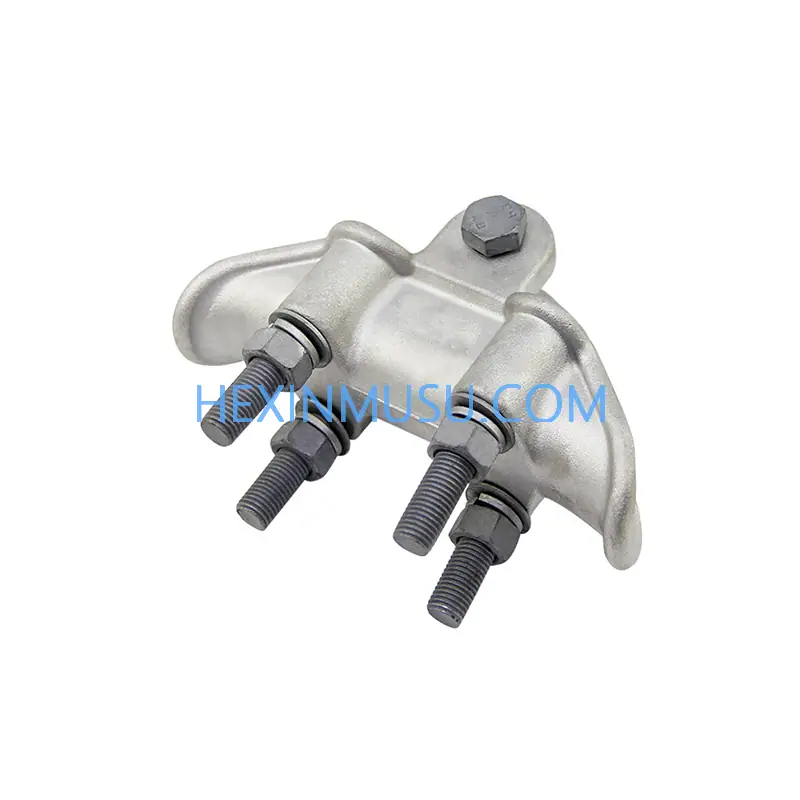

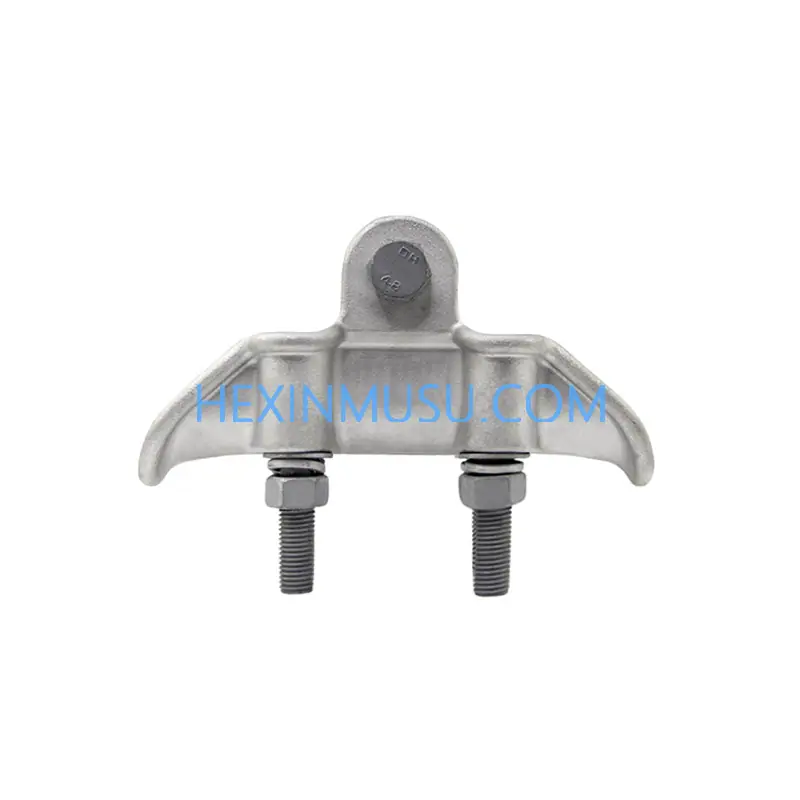

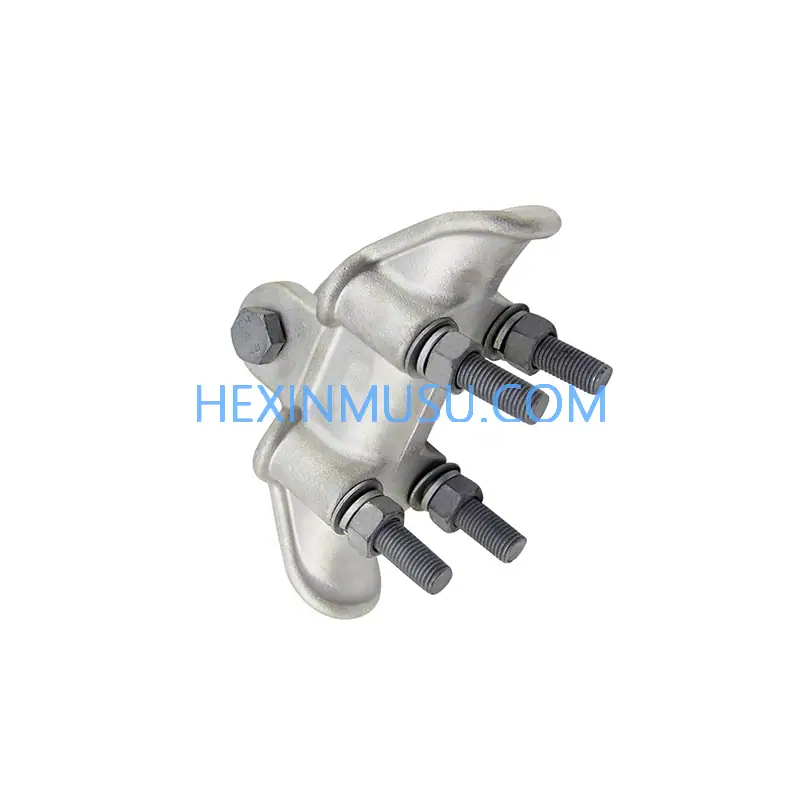

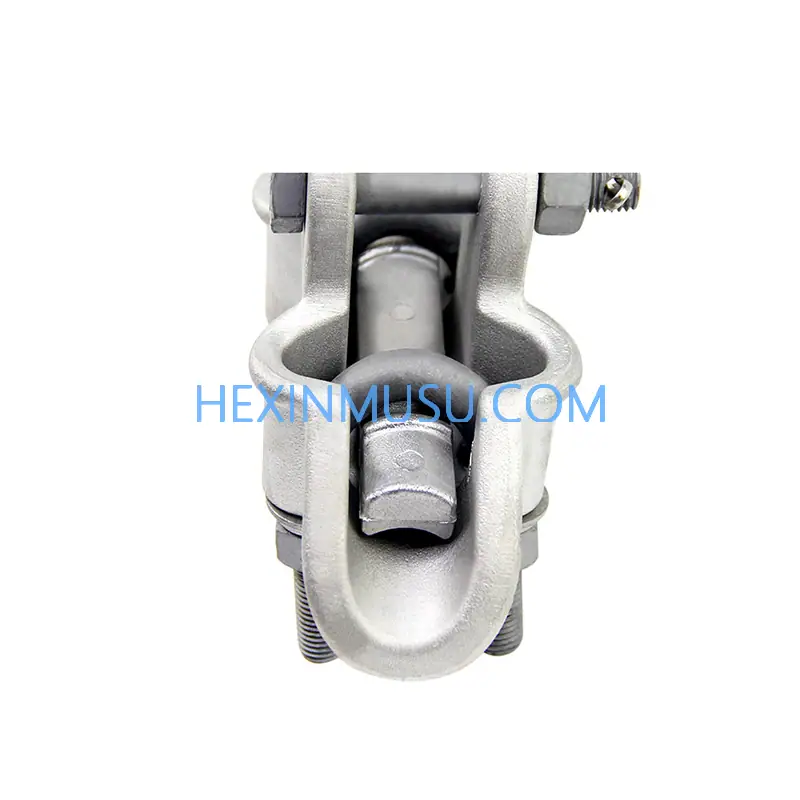

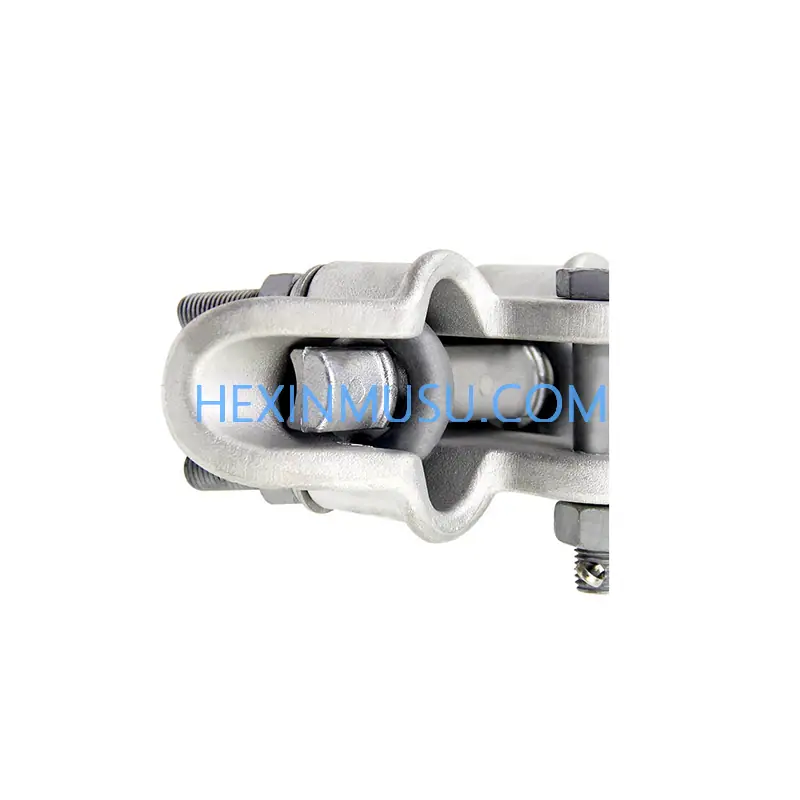

model number | XGH Pendant Clamp | the source (of a product) | sino |
material (that sth is made of) | aluminum | Product Use | Tie wire, power connection fittings |
Implementation of quality standards | national standard | weights | 1-5kg |
